Uart液晶显示屏,Uart TFT触摸屏,智能液晶显示屏

Uart串口屏,Uart TFT触摸屏,嵌入式智能串口显示屏

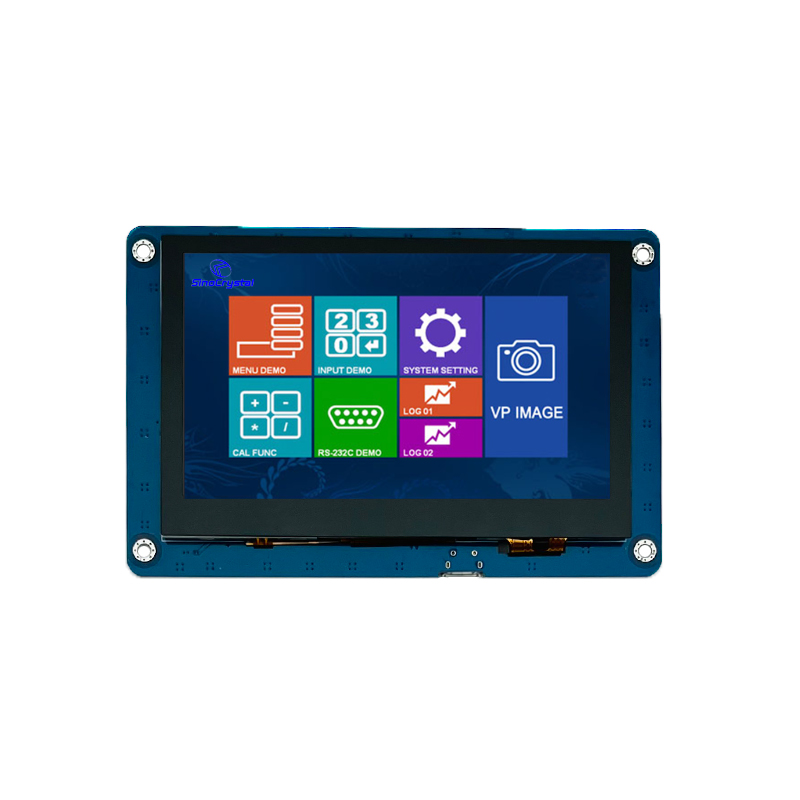

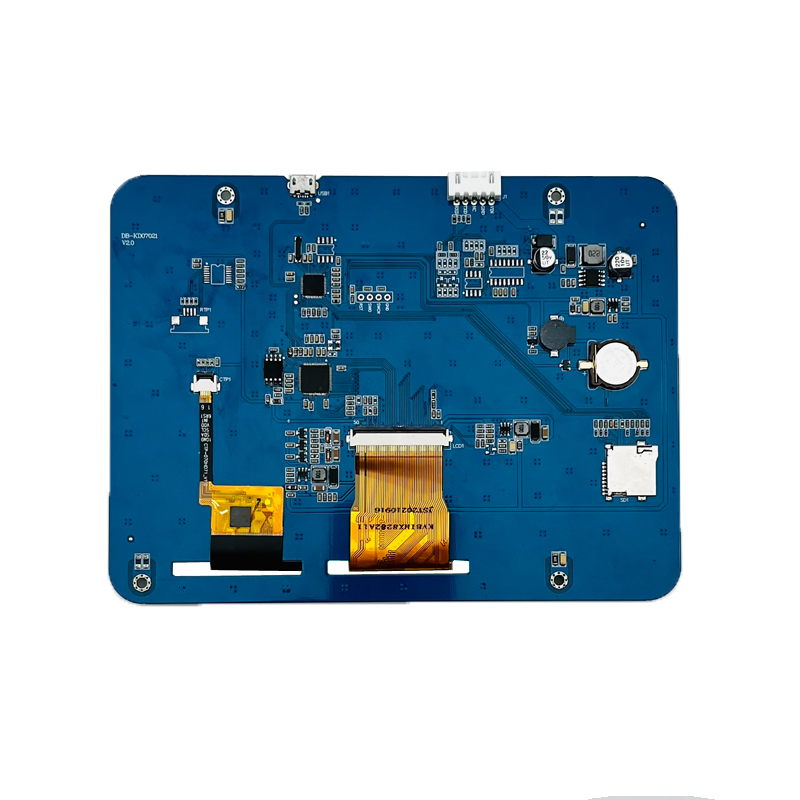

串口屏是指带有串口通信的TFT彩色液晶屏显示控制模组,它由显示驱动板、外壳、LCD液晶显示屏三部分构成,可以连接PLC、变频器、温控仪表、数据采集模块等外部设备,使工程师从繁琐的用户界面和触摸屏编程中解放出来。


使用智能TFT LCD模块,可大大减少产品的上市时间和BOM成本。Uart 串口屏广泛应用于工业自动化、智能家电、交通轨道、数据机房、充电桩、电力医疗、国防安全、共享设备、储能管理系统等各个显示领域。


Type Mode Product No. Size Picture Resolution Outline Dimension Active Area Interface IC Brightness Touch Screen View Direction Pin No. Shape

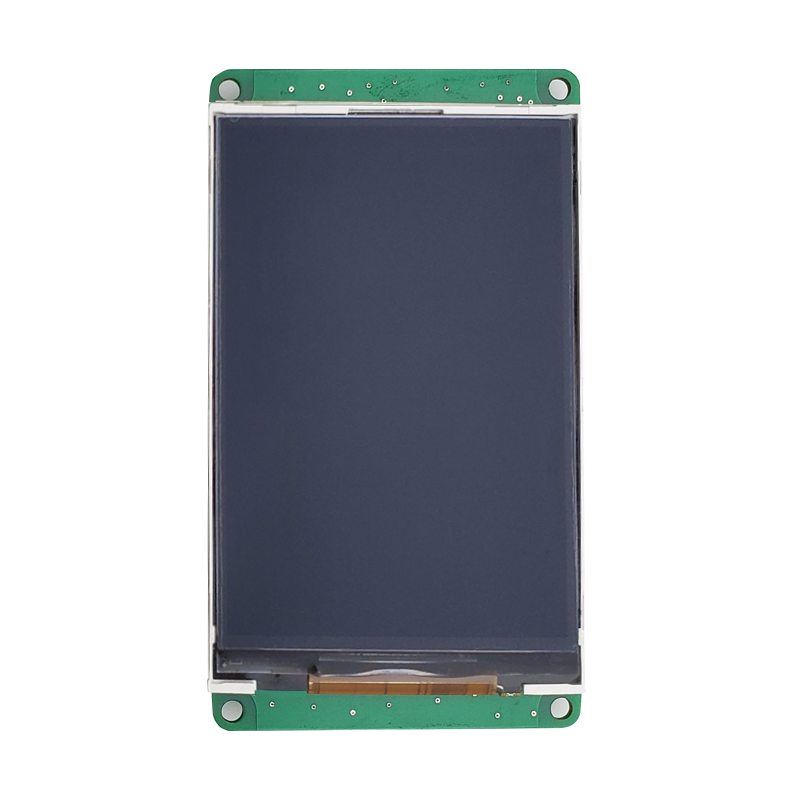

TFT IPS SCS035001-V02 3.5 480×320 97.00*54.50*5.45 73.44*48.96 Uart / 300 / ALL / Rectangle
Uart Uart SCS043001-V01 4.3 480×272 105.50*67.20*7.72 95.04*53.86 Uart / 250 CTP 12 8 Rectangle

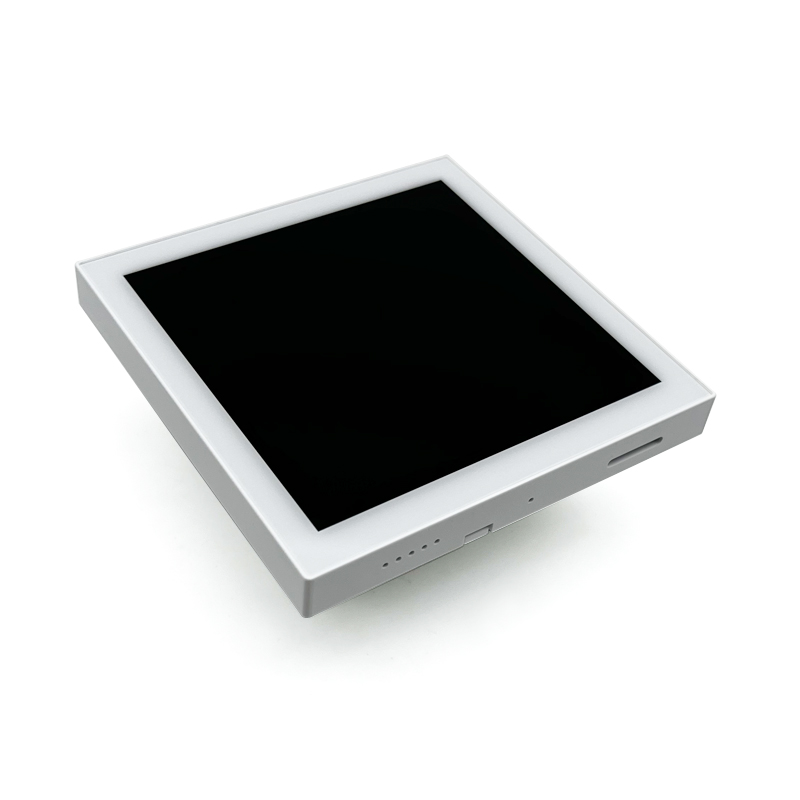

Uart Uart SCS040001-V01 4.0 480×480 86.31*86.31*37 71.86*70.18 Uart / 250 CTP IPS 4+2 Rectangle

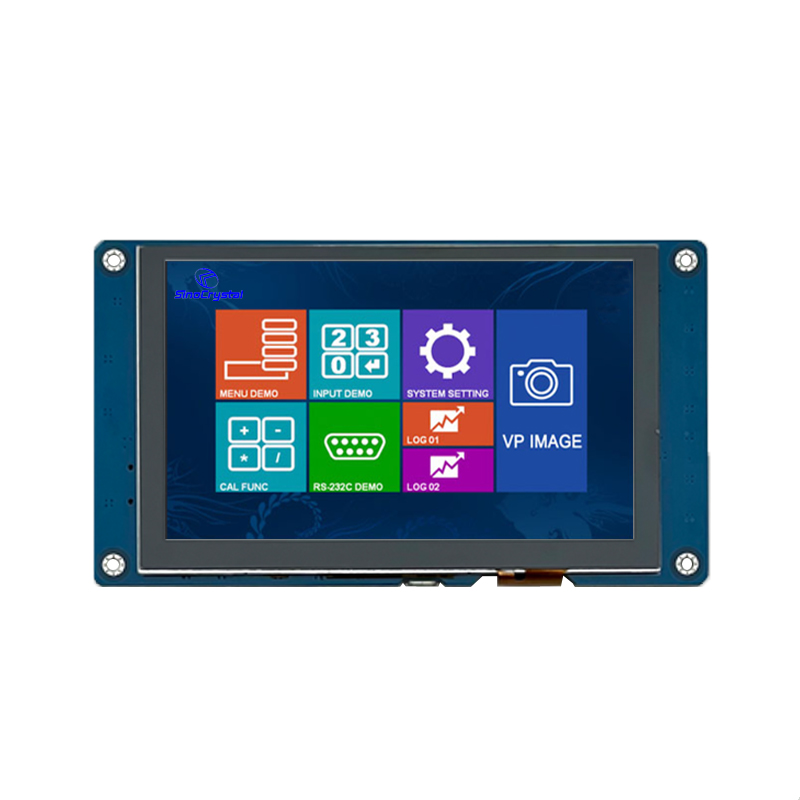

Uart Uart SCS050002-V01 5 800×480 120.70*76.30*8.07 108.00*64.80 Uart / 300 RTP 12 8 Rectangle

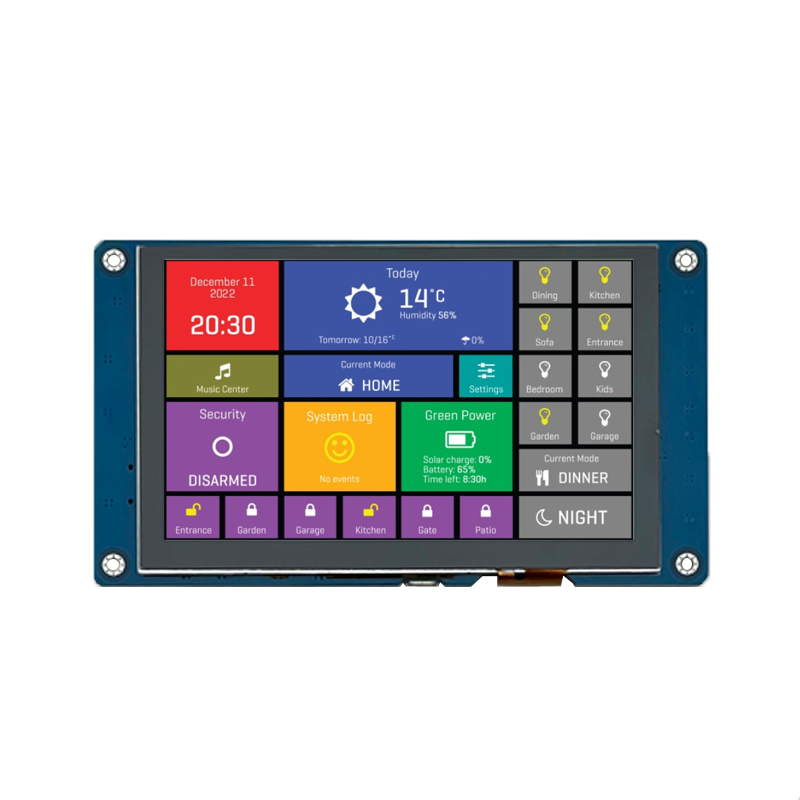

Uart Uart SCS050001-V01 5 800×480 120.70*76.30*8.07 108.00*64.80 Uart / 300 CTP 12 8 Rectangle

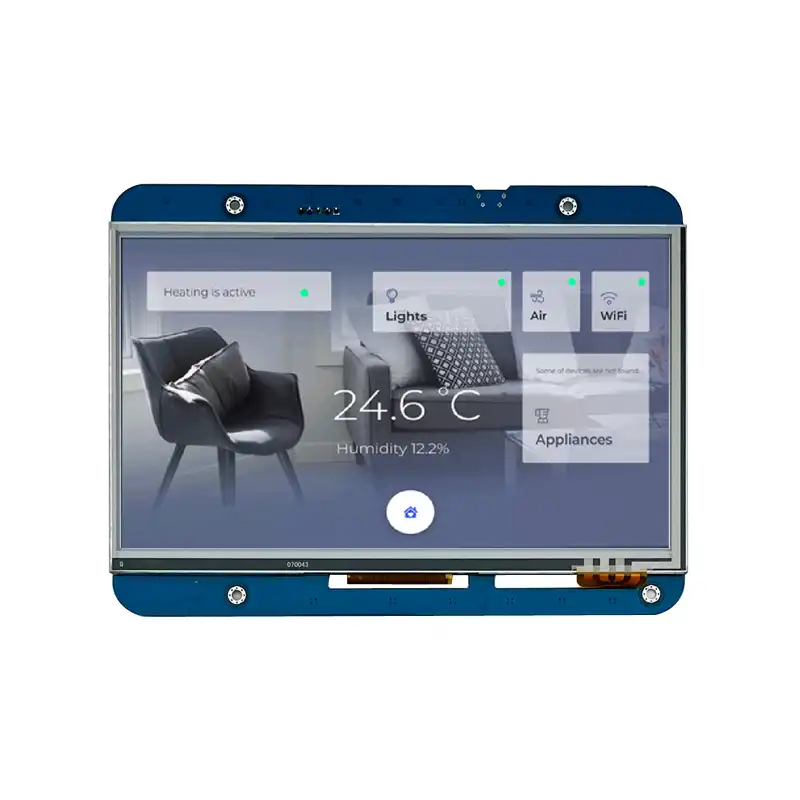

Uart Uart SCS070001-V01 7 800×480 165.30*101.00*9.07 154.08* Uart / 300 CTP 12 5 Rectangle

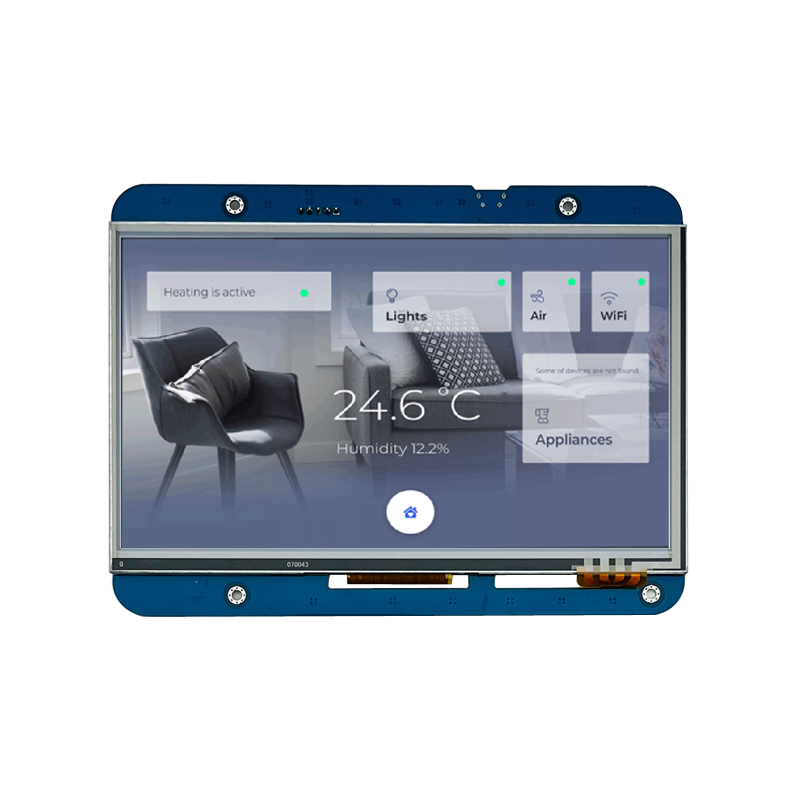

Uart Uart SCS070002-V01 7 800×480 165.30*101.00*9.07 154.08* Uart / 300 RTP 12 5 Rectangle

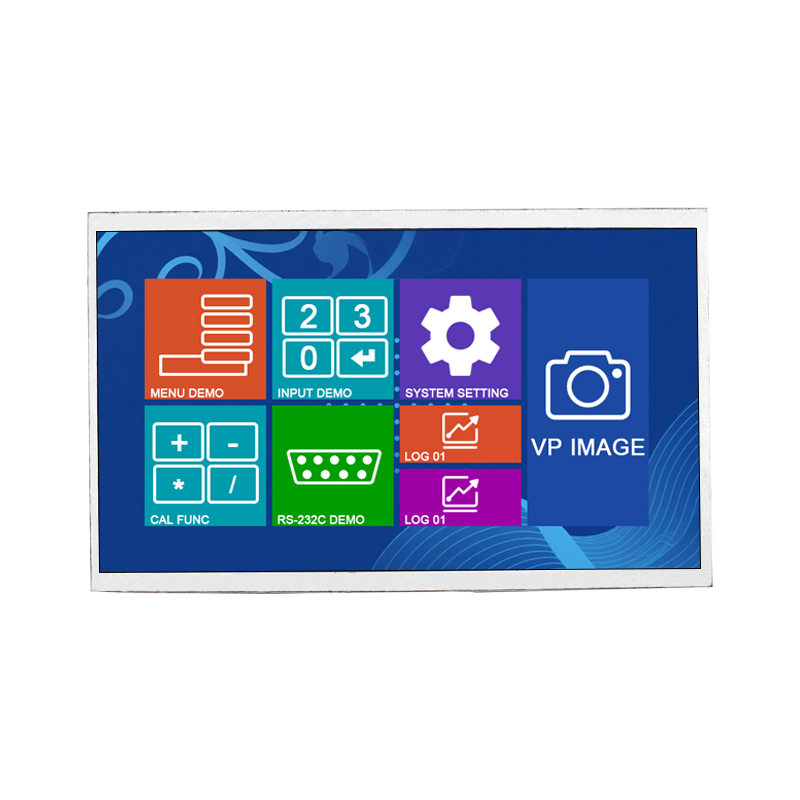

TFT IPS SCS101003-V01 10.1 1024x600 235.0*143.0*13.9 222.72*125.28 UART / 300 CTP ALL / Rectangle
